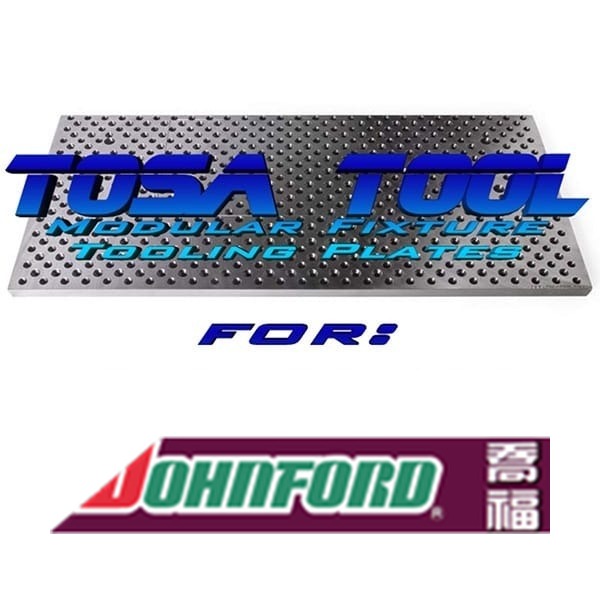

Johnford compatible modular subplates
Tosa Tool builds OEM-fit modular fixture plates for Johnford SV Super Vertical, VMC-850/1050 and large VMC box-way vertical machining centers. Double-column (DMC/SDMC), bridge, horizontal, pallet-changer and very large machines are quoted on request. These plates are designed around your machine’s table so you can mount once and change setups with modular workholding — without re-tramming a vise every job.
A salute to JOHNFORD
JOHNFORD machines are built by Roundtop Machinery Industries in Taichung, Taiwan. Their box-way SV Super Vertical and VMC machining centers are known for heavy castings, geared heads and rigid cutting, and they run in job shops and production shops across the country.
We’re proud to offer modular plates designed to fit these machines exactly.
Machine series & models in the configurator
Use the dropdowns above to select series → model → material. Johnford options include:
- VMC / SV Compact Series: VMC-850 / SV-32, VMC-1050 / SV-40
- SV Super Vertical Series: SV-33 / SV-33H, SV-41 / SV-41H, SV-48 / SV-48H, SV-60 / SV-60H
- Older SV Series: SV-45 (1990s)
- VMC Large Box-Way Series: VMC-1300 / VMC-1300HD / VMC-1300-2H, VMC-1600 / VMC-1600HD, VMC-1600S / VMC-1600SHD, VMC-2000S / VMC-2000SHD
Don’t see your model? Email us your model and table size.
If your Johnford mill isn’t listed, we can still help — use the Custom Plate Builder or email your table size and model to dan@tosatool.com.
Add Options & built-to-fit accessories
Select your plate, then Add Options to your Modular Subplate and add built-to-fit hardware accessories. Available add-ons include:
- Keyway locating bores & pins
- Set screws and plugs
- Plate mounting kit (t-nuts and capscrews)
- TT 6″ modular vise
- 8″ modular angle plate
- 20-pc modular pin kit
- Tosa Tool modular full kit or half kit (with shipping)
That way the plate and the accessories that fit it travel together in one order.
Tosa Tool hole pattern (TT)
The TT standard hole pattern is two nestled 1.2500″ grids sharing the same plate:
- Precision bore grid: ø.5010″ ±.0002 TYP on 1.2500″ centers — for locating pins and accurate repeat setups
- Threaded hole grid: 1/2-13 UNC 2B thru TYP on 1.2500″ centers, with .5625 × .19 counterbore (~3/16″ deep) — for clamps, bolts, and modular accessories
The two patterns are offset so bores and threaded holes alternate; neighboring holes (bore next to thread) fall on 0.625″ centers. Same pattern across Tosa Tool modular subplates so options and built-to-fit hardware accessories line up from plate to plate.
Material options
- PH — 4140 PreHard steel: excellent strength and durability for production workholding
- MC — medium-carbon steel: strong, long-life steel plate
- AL — 7075-T6 aluminum: light but strong; popular when weight and handling matter
Made to order in Wisconsin
These plates are MTO from TosaTool LLC.
Lead Time: Standard lead time is 6 to 10 weeks, depending on our material suppliers, current workload and the options you select. Need it sooner? Add RUSH service for 15% and we will do our best to get your order out the door as fast as possible, with overtime hours and expedited vendor service.
Complete the setup
After you select your plate, use Add Options to your Modular Subplate for built-to-fit hardware accessories — and check You May Also Like below for the modular vise, angle plates, and clamping kits that finish the TT-pattern setup.
