If your mill isn’t in our machine menus, you’re not out of luck. Use the Custom Plate Builder to spec any size, material, and hole pattern (including TT), or email Dan with your table size and bolt pattern and he’ll quote a plate made for your machine.
Choose your plate material. . Enter the plate length × width × thickness. Select the hole pattern. Enter the mounting dimensions. Select any available options. Review with Check Your Order, then Add to cart. Need help? Call 608-721-TOOL or email dan@tosatool.com.

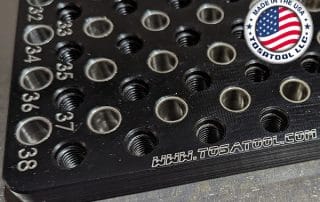

The Tosa Tool (TT) standard hole pattern is two nestled 1.2500″ grids on the same plate: Precision bore grid: Ø.5010″ ±.0002 TYP on 1.2500″ centers — for locating pins and accurate repeat setups Threaded hole grid: 1/2-13 UNC 2B thru TYP on 1.2500″ centers, with Ø.5625 × .19 counterbore (~3/16″ deep) — for clamps, bolts,
Modular fixturing on a CNC mill offers several compelling advantages: Flexibility and Adaptability:* Customization: Modular systems allow you to quickly adapt the setup for different part geometries or sizes without needing to fabricate new fixtures from scratch. This is particularly useful in job shops or when prototyping where part designs change frequently.*Quick Changeovers: Components like
Here at Tosa Tool we specialize in making fixturing to YOUR specifications. This means that each and every order starts with us ordering raw materials to make the product you recieve. In general and especially these days with all of the problems in global supplies custom orders can take a little more time. We do
The 9/16"diax3/16"deep counterbores are for usage with our speedy locate and fasten systems. These allow our vises and fixtures, and other hardware to be located and bolted down with one fastener. The tolerance on these is rougher than the precision bores (.003") but try it out, you will find that almost every time the fixture
The answer to this is: WE DO! As of November 2019 we are offering the 6" Modular Vise! This unique Vise utilizes a multi configurable 6" wide design. Our G-NOB Gripper Buttons clamp just about any shape easily on the bottom most .05", and you can also use your standard 6" Kurt Vise Jaws with
Tosa Tool packages all subplates greased, sealed in plastic, and in a extremely durable wood crate (see pictures). It is then decided if it should ship UPS, FedEx, or LTL (LTL only for large plates other services will not pickup). Crates are screwed together using no less than 30 wood screws (get out your screw
The best answer is AIR CONDITIONING, but if you are not in a air conditioned space we suggest flood coolant. Regular usage of flood coolant will keep any rust from forming on your plate. The coolant has Rust Inhibitor chemicals in it to aid with this. The Hot Black Oxide really helps with the medium
In a review of Tosa Tools Modular Fixturing Systems Bob Warfield of CNC CookBook made a suggestion to put a thin film of it between the modular subplate and the machine table. Since then it has been asked for many times and we decided to offer it in a convienant size for our customers who
